Android5.0-
The screenshots in this manual show the Japanese version of each screen.

Set Up Device Owner Mode Using Android ADB Developer Tools

The final step in making a device manageable is to enroll it. When enrollment is complete, the device is registered in BizMobile Go! as an MDM device and can be managed.

To enroll a device, reset it, follow the procedure to set up Device Owner mode, and then enter the Key/Code when the BizMobile Go! MDM agent app appears.

When enrollment is complete and the device is registered in BizMobile Go!, the profiles, apps, and other items registered in the device's template are distributed to the device, completing device setup (kitting) automatically.

Note: You need a PC (Windows or Mac) with Android SDK Platform Tools installed and set up.

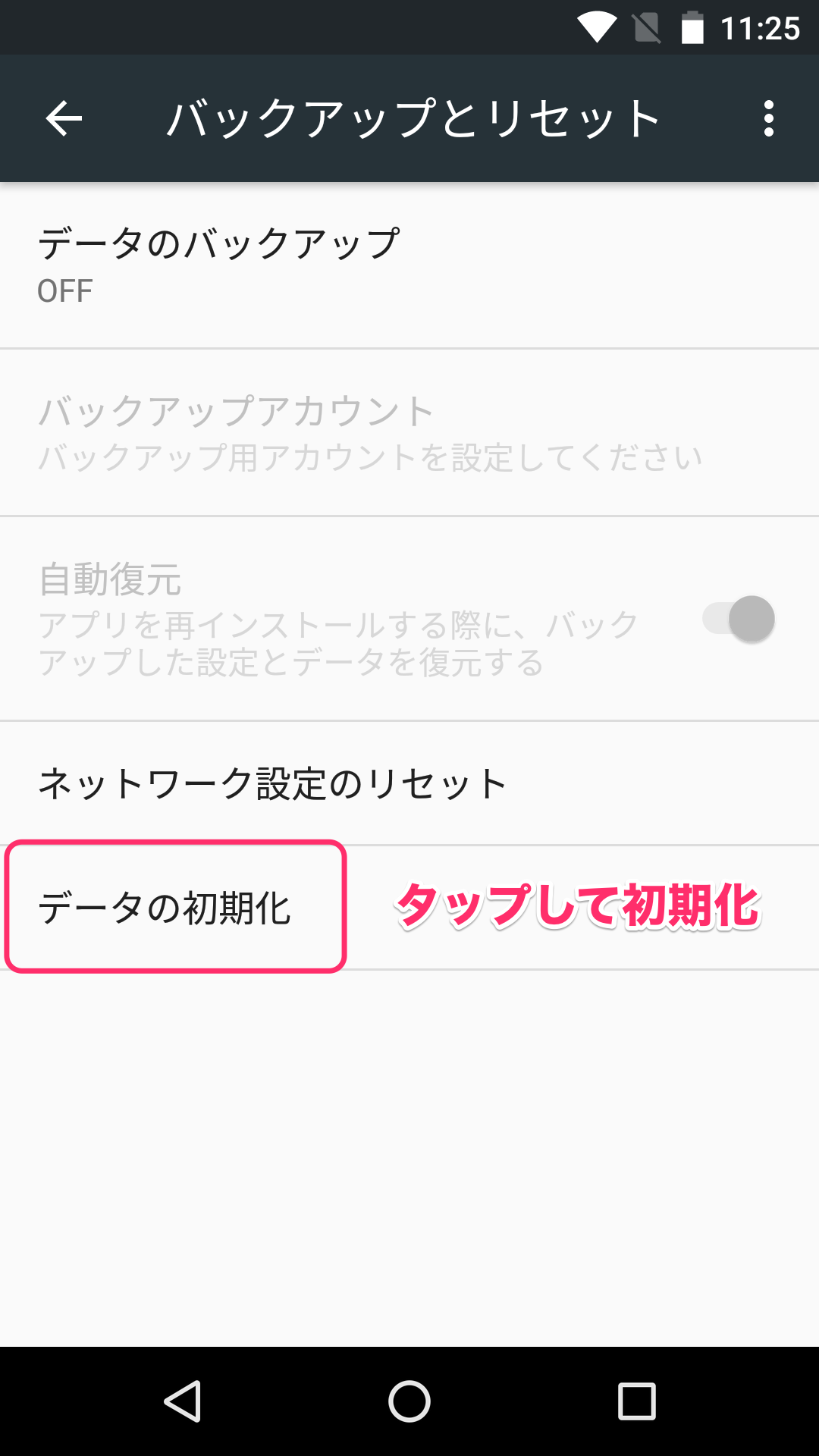

  1. Reset the device. From the device's Settings menu, select System → Reset options → Erase all data (factory reset) to reset it.
    Note: The menu name may differ depending on the model.

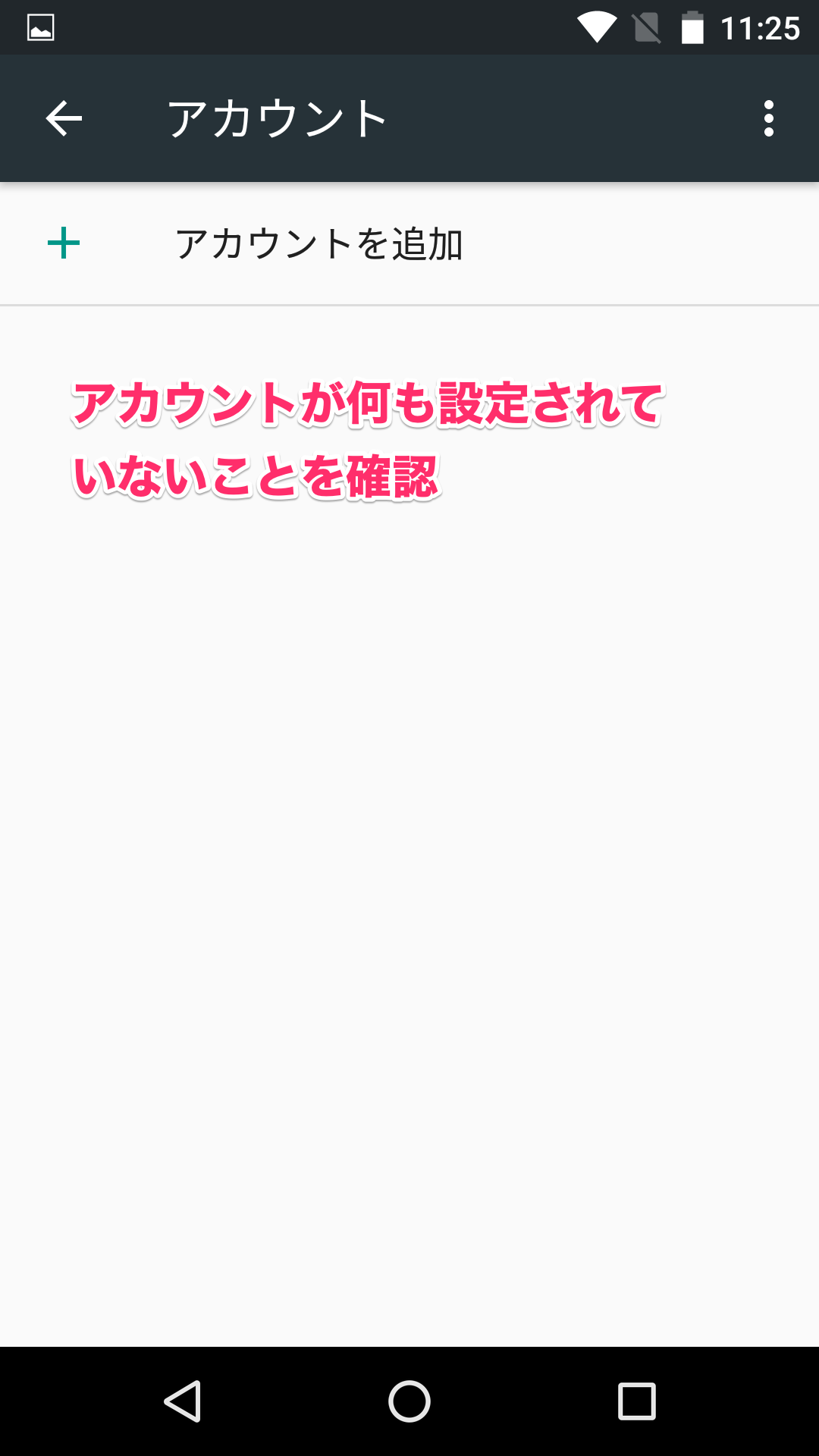

  1. After the reset, confirm that no accounts, such as a Google account, are set up on the device.
    To check, select Accounts from the device's Settings menu.

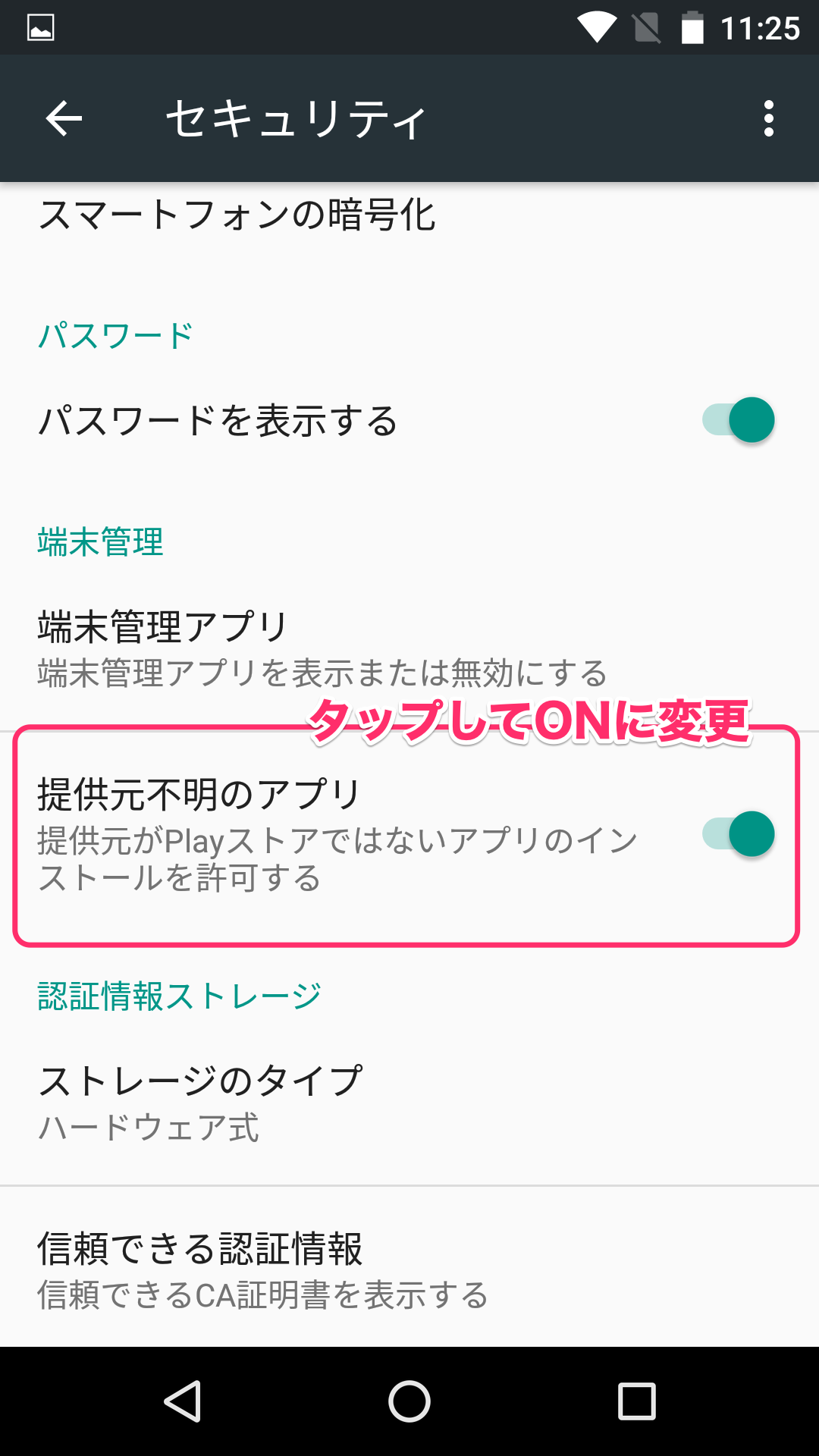

  1. Before installing the BizMobile MDM agent app, we recommend allowing Install unknown apps.
    From the device's Settings menu, select Security, and then enable Device management: Allow installation of apps from sources other than Play Store.

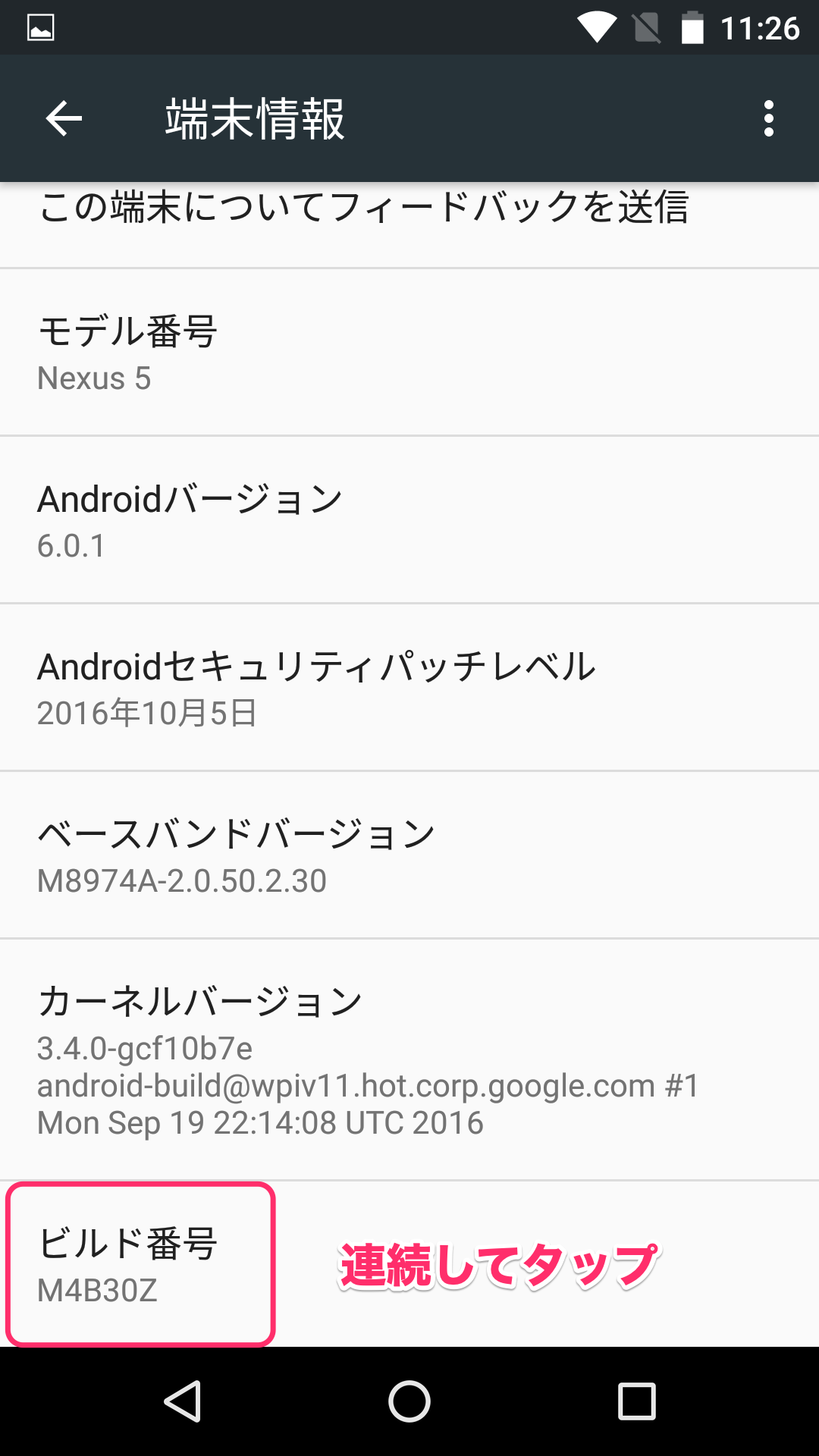

  1. Enable Developer options on the device (disabled by default).
    From the device's Settings menu, select About phone, and then keep tapping Build number until You are now a developer! appears.

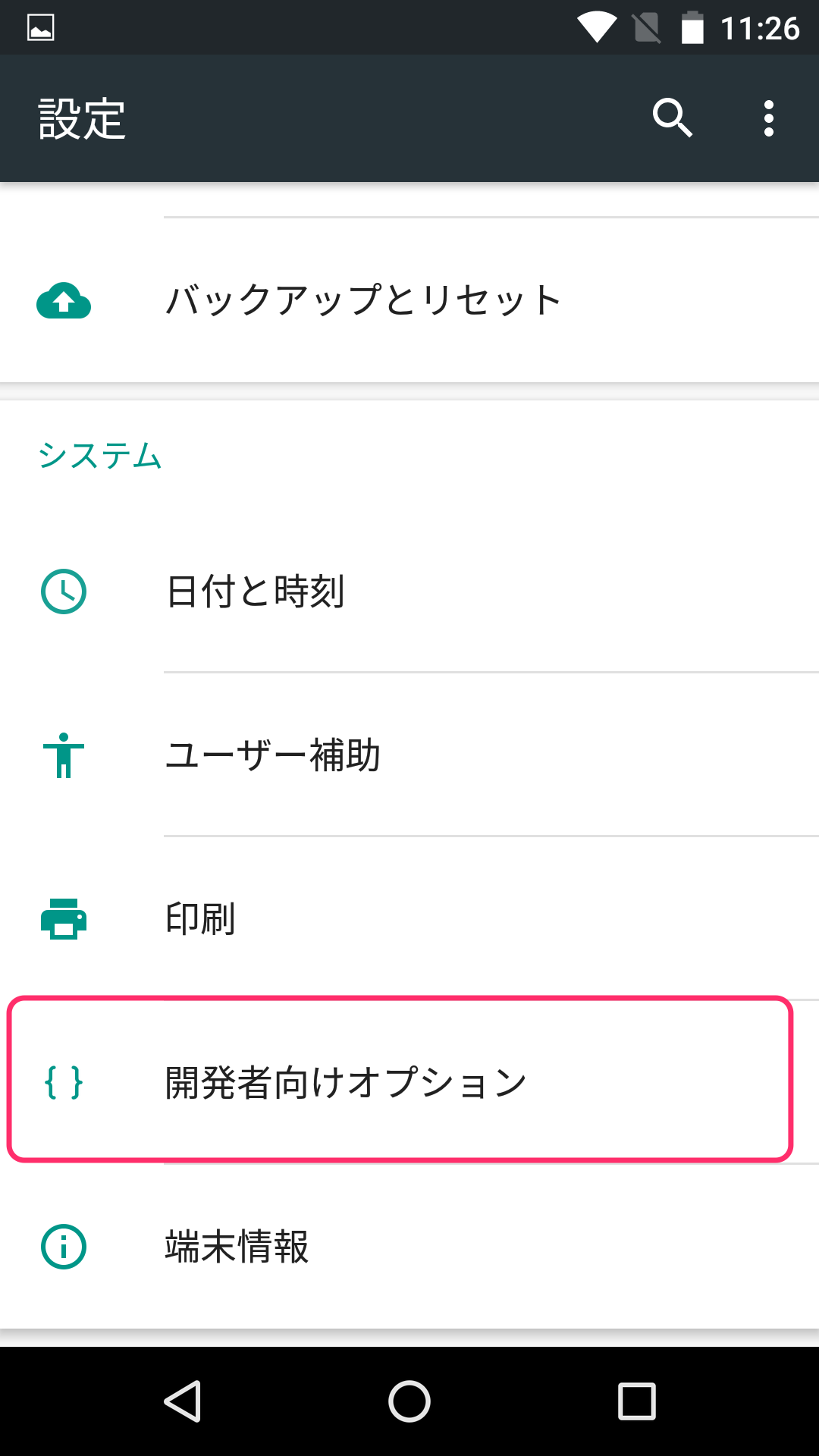

    If Developer options appears in the Settings menu, it is enabled.

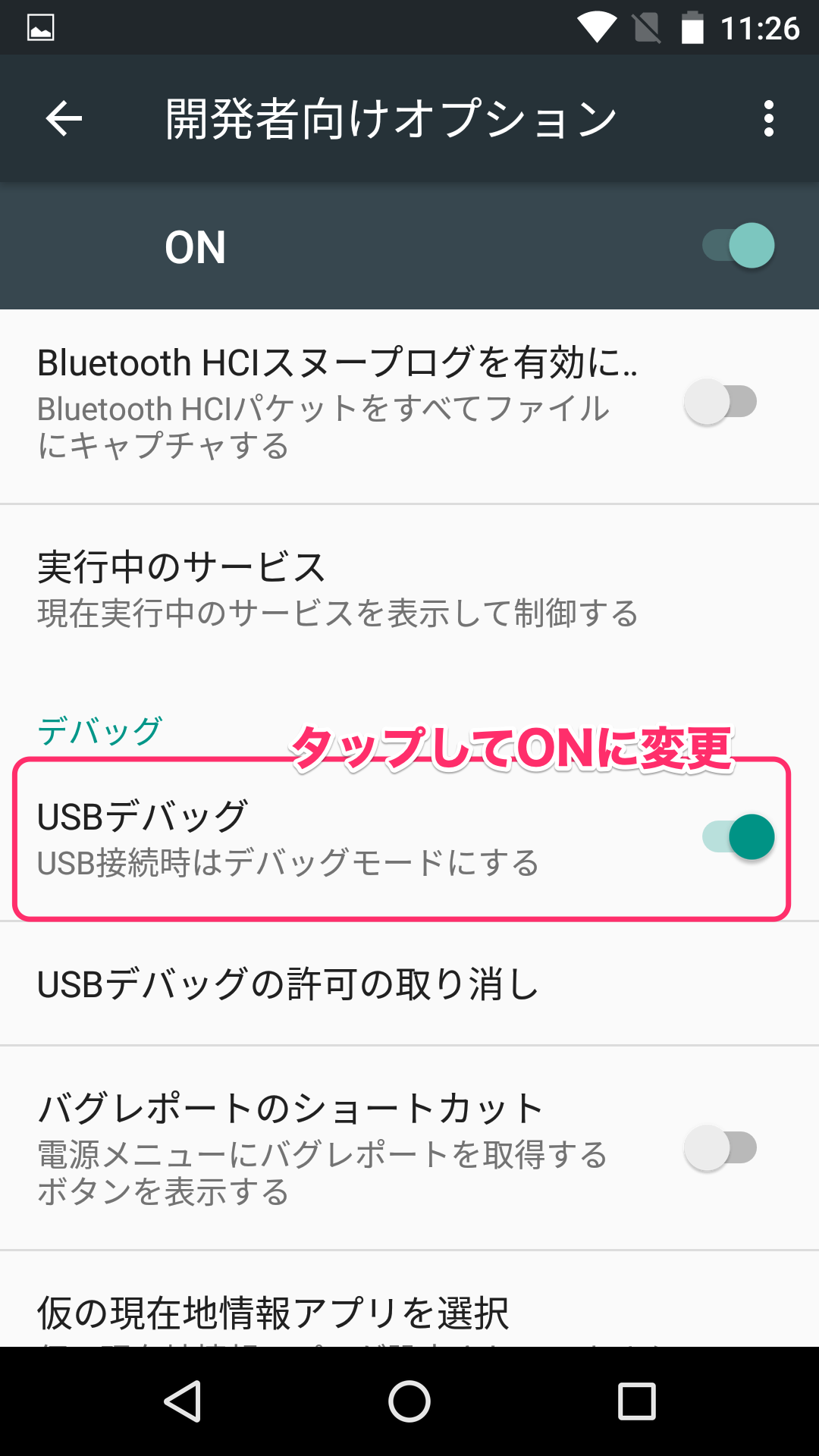

  1. Enable USB debugging. From the device's Settings menu, select Developer options, and then enable Debugging: Debug mode when USB is connected.

  1. On the PC, go to the following URL and download the BizMobile MDM agent app to the PC.

    https://s3-ap-northeast-1.amazonaws.com/bizmo/public/agents/asia/Android+Agent.apk



  1. Connect the device to the PC (Windows or Mac) via USB, and start Command Prompt (Terminal on a Mac).

  2. Run the following command to check whether the device is ready to receive and process ADB commands.
    adb devices –l

  3. If the command output is displayed as follows, the device is ready to receive and process ADB commands.
    List of devices attached
    *********** device product:****** (the device product name is displayed) model: ****** (the model name is displayed) device:****** (the Android image applied to the device is displayed)

  4. Run the following command to move to the folder that contains the app you downloaded in step 6.
    cd ~/Downloads
    Note: The Downloads part is the folder that contains the app you downloaded in step 6. If it is stored in a folder other than Downloads, specify that folder.

  5. Run the following command to install the app on the device.
    adb install Android+Agent.apk
  6. If <b>Success</b> is displayed in the command output as follows, the app has been installed.
    Android+Agent.apk: 1 file pushed. 7.2 MB/s (2885246 bytes in 0.384s) pkg: /data/local/tmp/Android+Agent.apk
    Success
  7. Run the following command to set Device Owner mode.
    adb shell dpm set-device-owner in.bizmo.mdm/.MDMDeviceAdminReceiver
  8. If the command output is displayed as follows, the Device Owner mode setup is complete.
    Success: Device owner set to package ComponentInfo{in.bizmo.mdm/.in.bizmo.mdm.MDMDeviceAdminReceiver}
    Active admin set to component {in.bizmo.mdm/in.bizmo.mdm.MDMDeviceAdminReceiver}

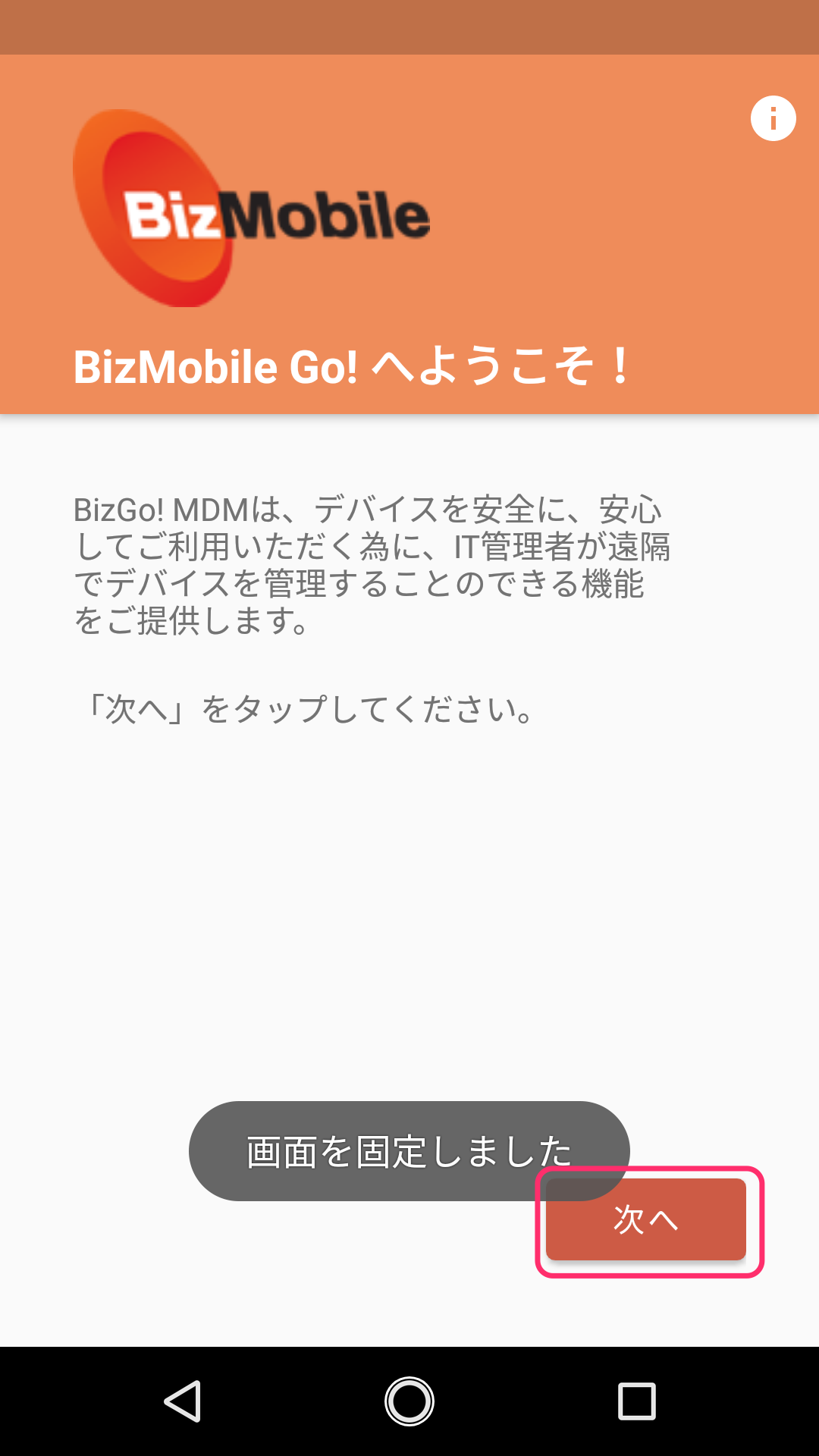

  1. Tap the BizGo! MDM agent app for Android that was automatically installed on the device. The Welcome to BizMobile Go! page opens, and the screen is locked to this page until device enrollment is complete.

    Tap Next to proceed with device enrollment.

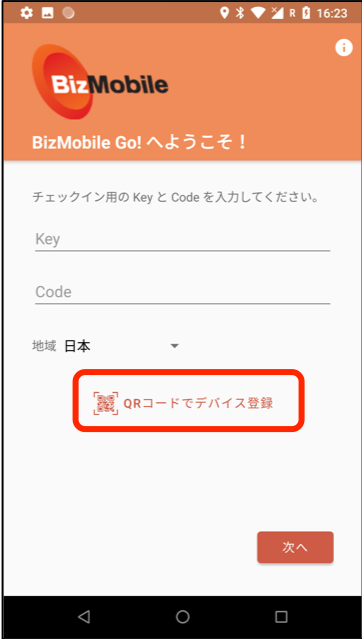

  1. Enter Key=(enrollment key) and Code=(enrollment code) from the device information created in the BizMobile Go! admin console, select Japan as the region, and tap Next.

    To use a QR code, tap Register device with QR code.
    The QR code reader starts. Scan the QR code shown in the device information in the BizMobile Go! admin console.

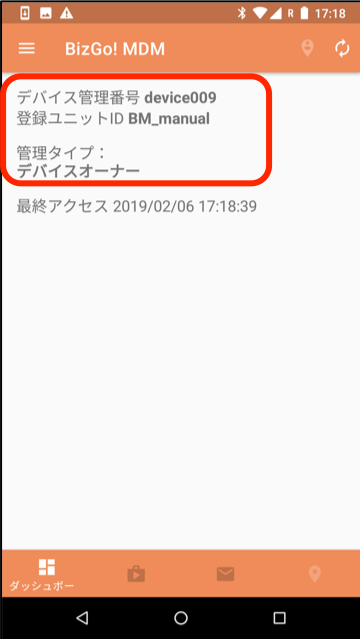

  1. When the settings screen opens and shows Managed Unit: (your unit name), the Device Owner mode setup and enrollment on the device are complete.

    You can check the type of management applied to the device under Management Type.
    If it shows Management Type: Device Owner mode, Device Owner mode has been set up correctly.
info

Depending on the network conditions of the device setup environment, it may take some time for all the profiles, apps, and other items registered in the template to be installed on the device.

info

Wait at least 5 minutes after enrollment is complete before signing in to the device with a Google Workspace account.
(If you are configuring EMM with a Google Workspace account, you must sign in to the device after the first EMM sync following enrollment is complete.)
