Create and Edit Geofences

Create a geofence

Create a geofence to assign to a policy. You can assign multiple geofences to one policy.
You can register up to 20 circles in one geofence.

danger

On iOS, due to OS specifications, the maximum number of circles that are targets of entry and exit detection at one time is 20. If the total number of circles in the assigned geofences exceeds 20, the 20 circles nearest to the device become the active circles for entry and exit detection and are displayed as green circles on the BizGo! Air map.
The accuracy of geofence entry and exit events depends on the location accuracy of the OS and the device. The minimum effective radius is 50 meters. We recommend testing on the devices you will actually use before setting the geofence range.

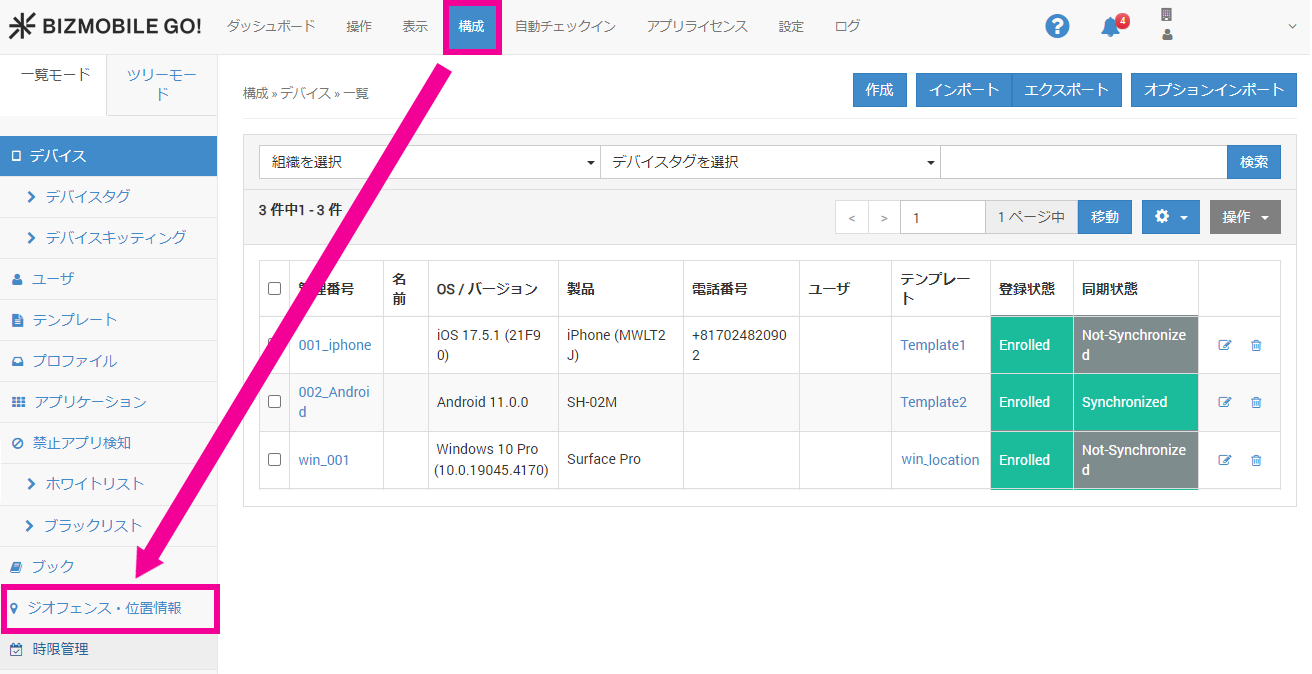

1. From the menu bar, click CONFIG → Geofence / Location.


2. On the Geofence screen, click [Create].


3. Create an area on the map with the following steps.

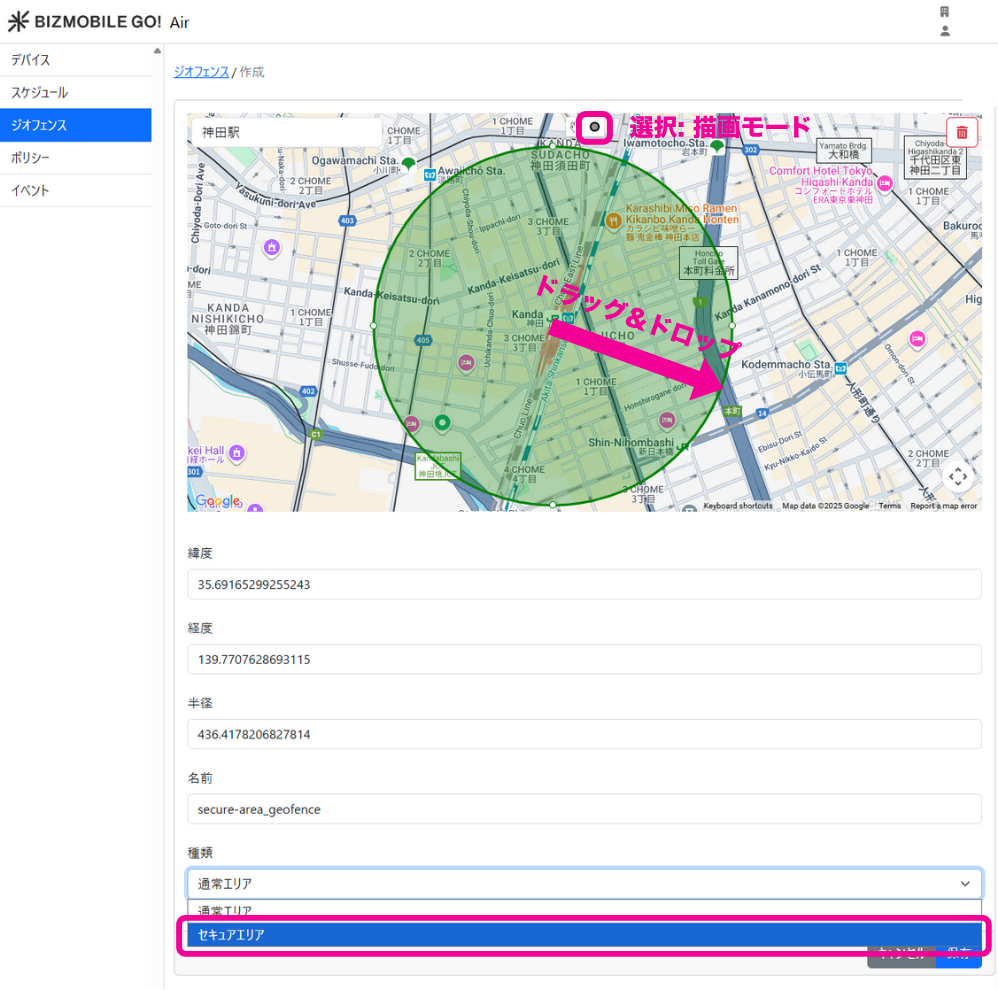

   Create an area
   Click the circle icon to switch to "drawing mode". Drag and drop on the map to draw a new area. Name the circle you created. Specify whether this geofence is a normal area or a secure area.
   Edit an area

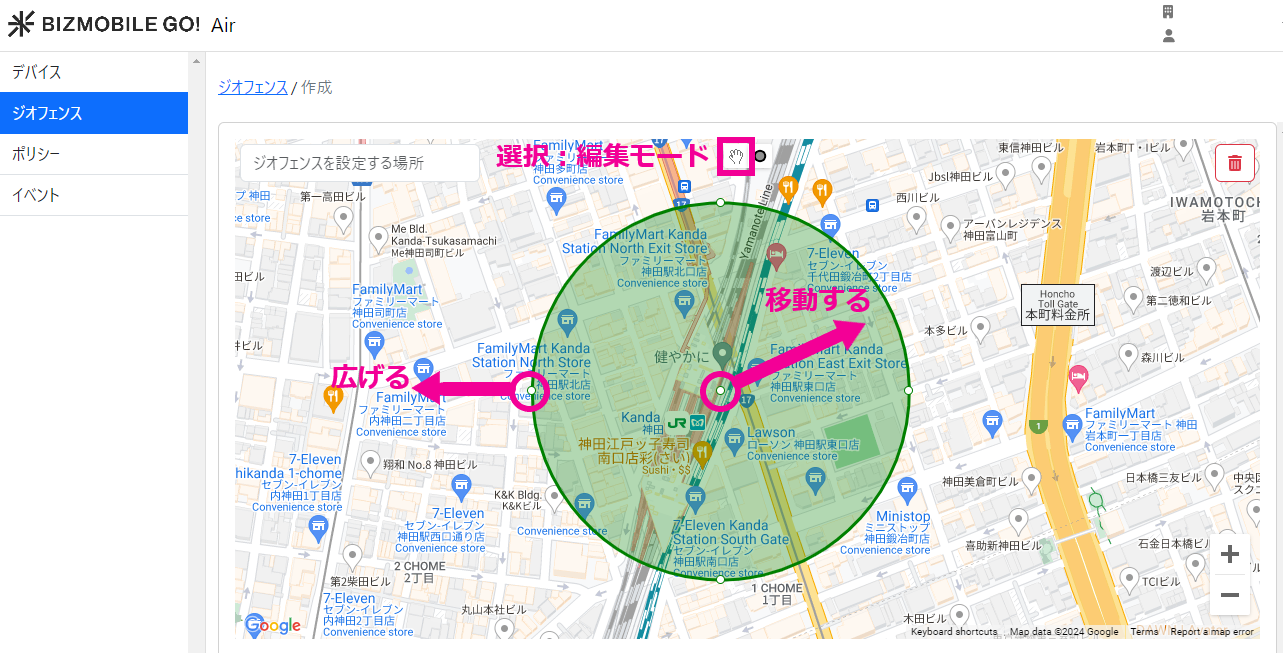

   Click the hand icon to switch to "edit mode".
   Click the center point of a green circle and drag and drop to move the area.
   Click a point on the edge of a green circle and drag and drop to change the radius of the area.

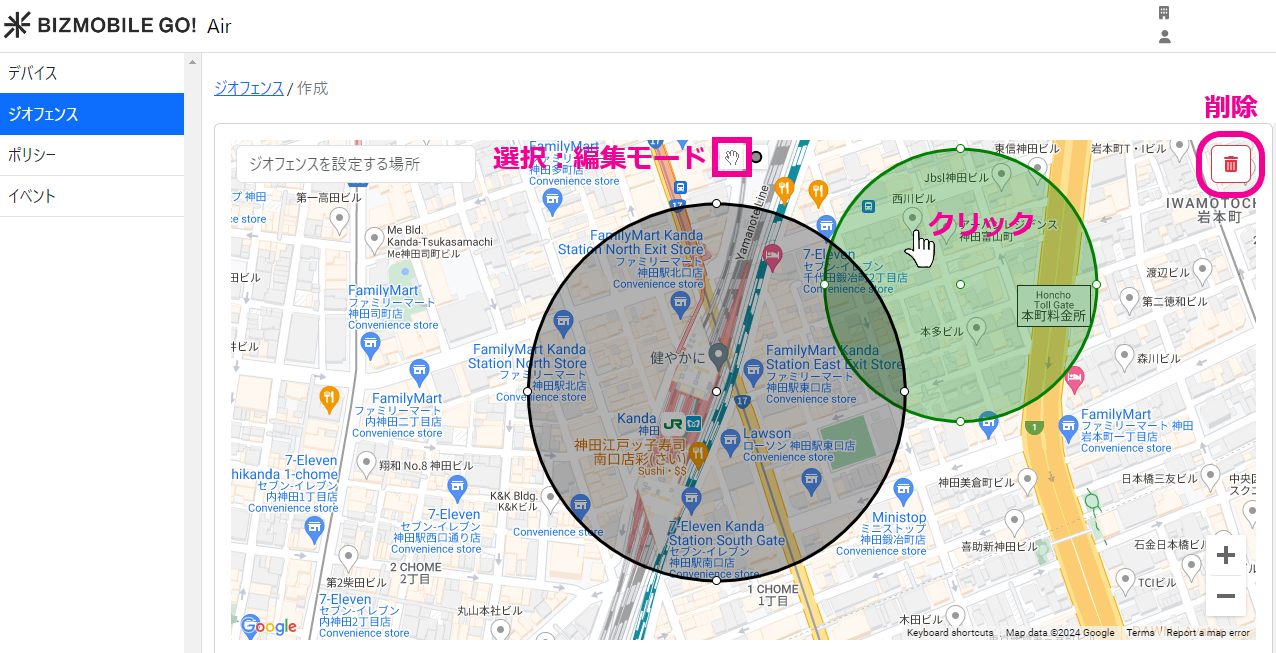

   Select / delete an area
   Click the hand icon to switch to "edit mode".
   Click a gray area to turn it green and select it as the target for editing.
   Click the trash icon at the upper right of the map to delete the selected area.

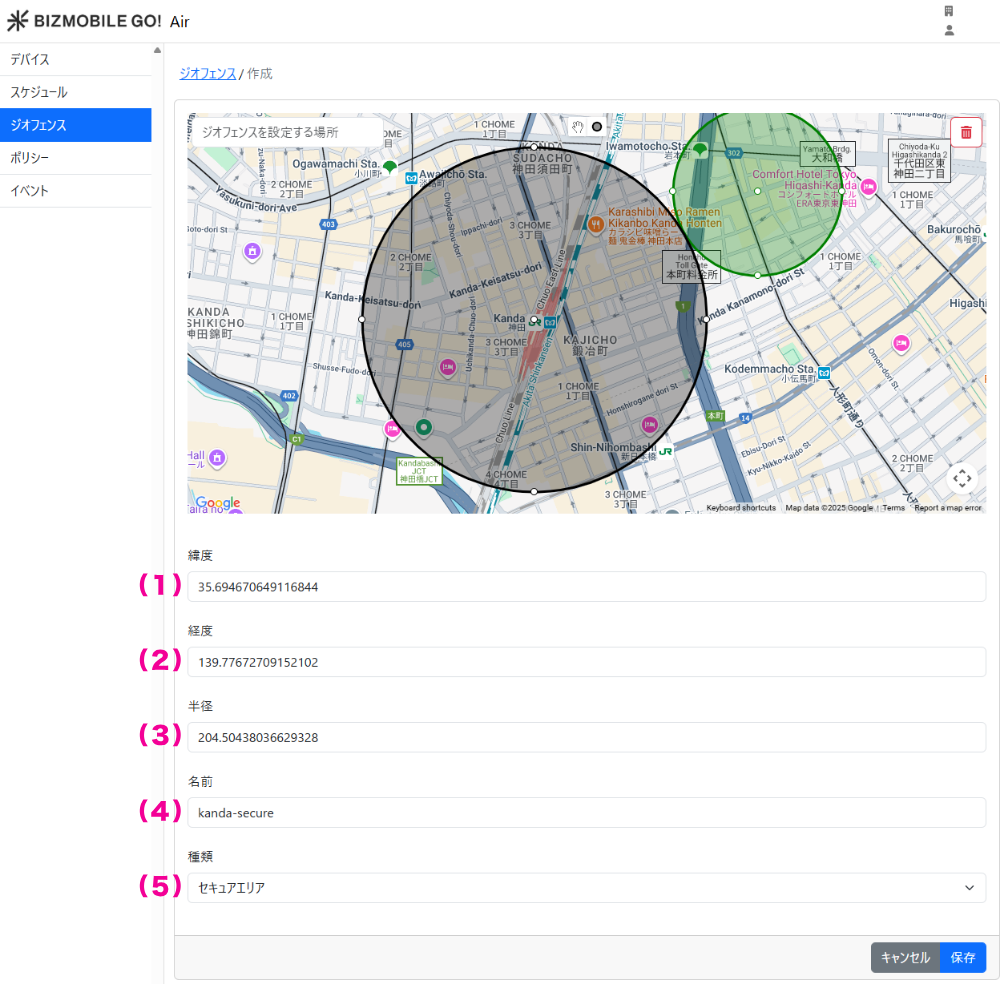

4. Confirm that each item is filled in and click "Save".


   (1) Latitude Specify the latitude of the green area as a value from 0 to 85 (degrees).
   (2) Longitude Specify the longitude of the green area as a value from 0 to 180 (degrees).
   (3) Radius Specify the radius of the green area as a value from 50 to 10000 (meters).
   (4) Name Specify the name of the area you created.
   (5) Type Specify whether the area is a normal area or a secure area. This is displayed only for units that use the NFC High Security Add-on.

Edit a geofence

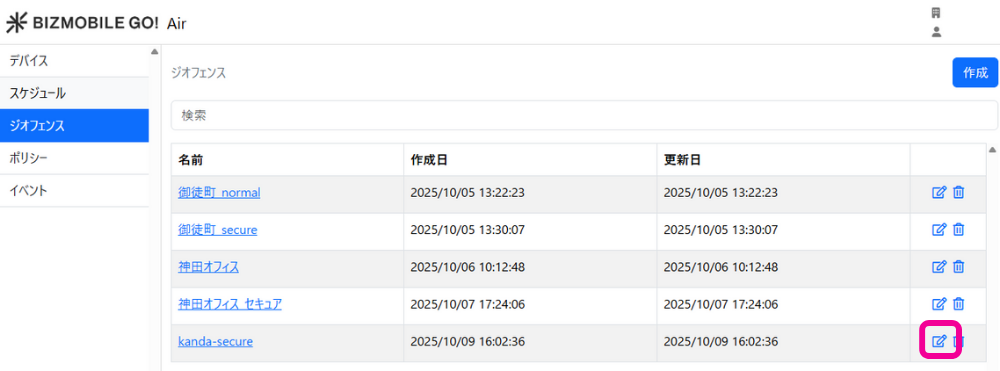

1. On the Geofence screen, click the edit icon next to the geofence you want to edit.

2. Edit the circles on the map with the following steps. <Create an area>

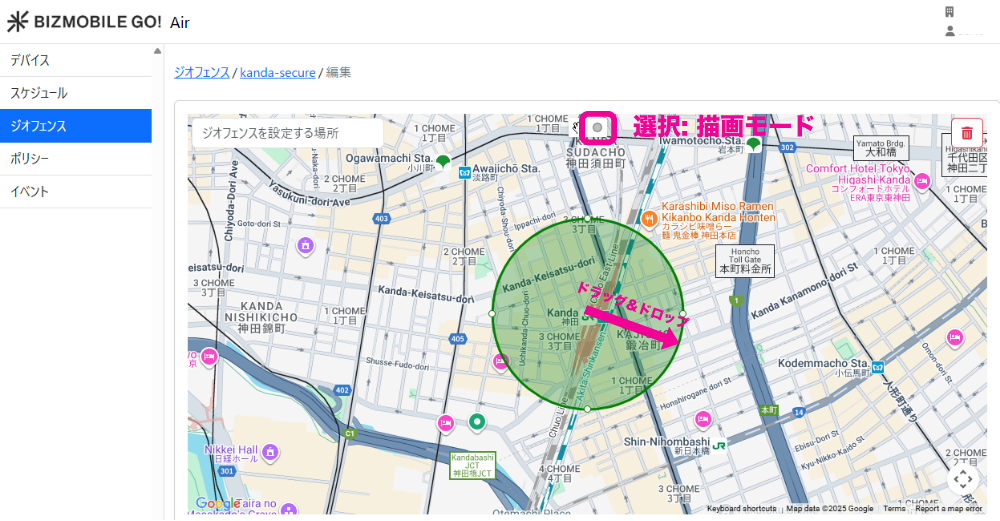

   Click the circle icon to switch to "drawing mode".
   Drag and drop on the map to draw a new area.

   <Edit an area>

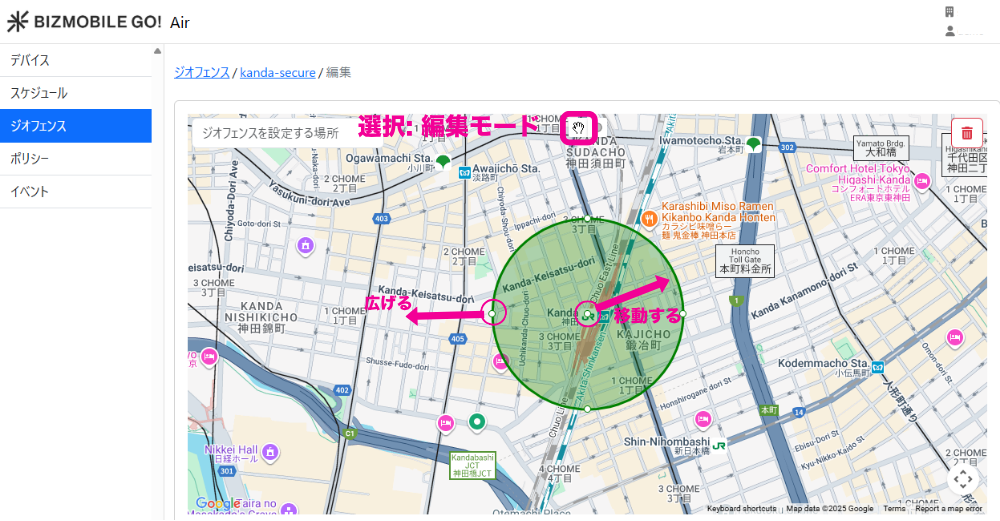

   Click the hand icon to switch to "edit mode".
   Click the center point of a green circle and drag and drop to move the area.
   Click a point on the edge of a green circle and drag and drop to change the radius of the area.

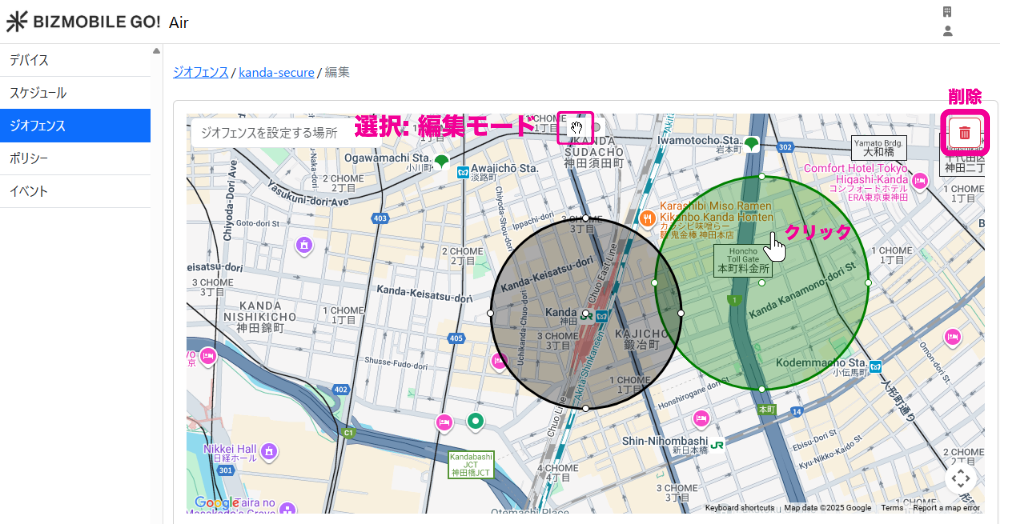

   <Select / delete an area>
   Click the hand icon to switch to "edit mode".
   Click a gray area to turn it green and select it as the target for editing.
   Click the trash icon at the upper right of the map to delete the selected area.

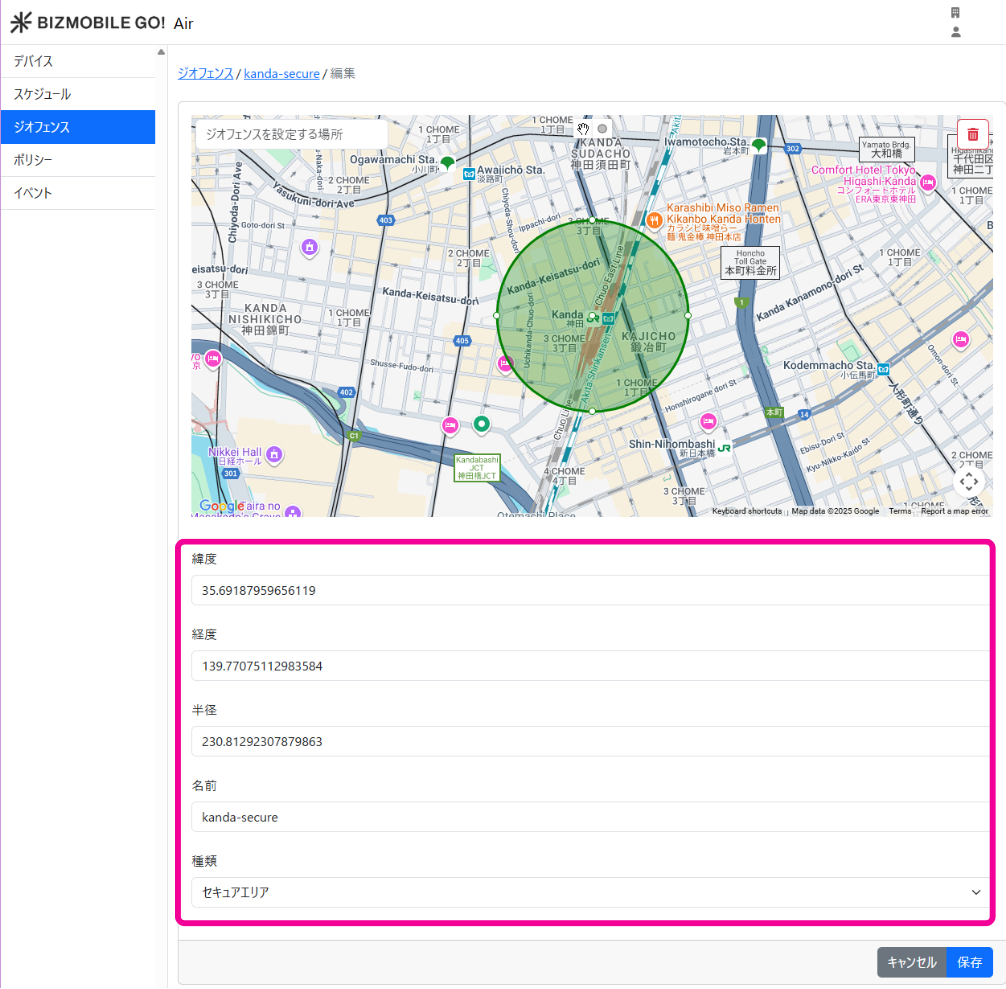

   To edit each item, enter the value you want.
   Note: Geofence names shown in past logs are not updated.

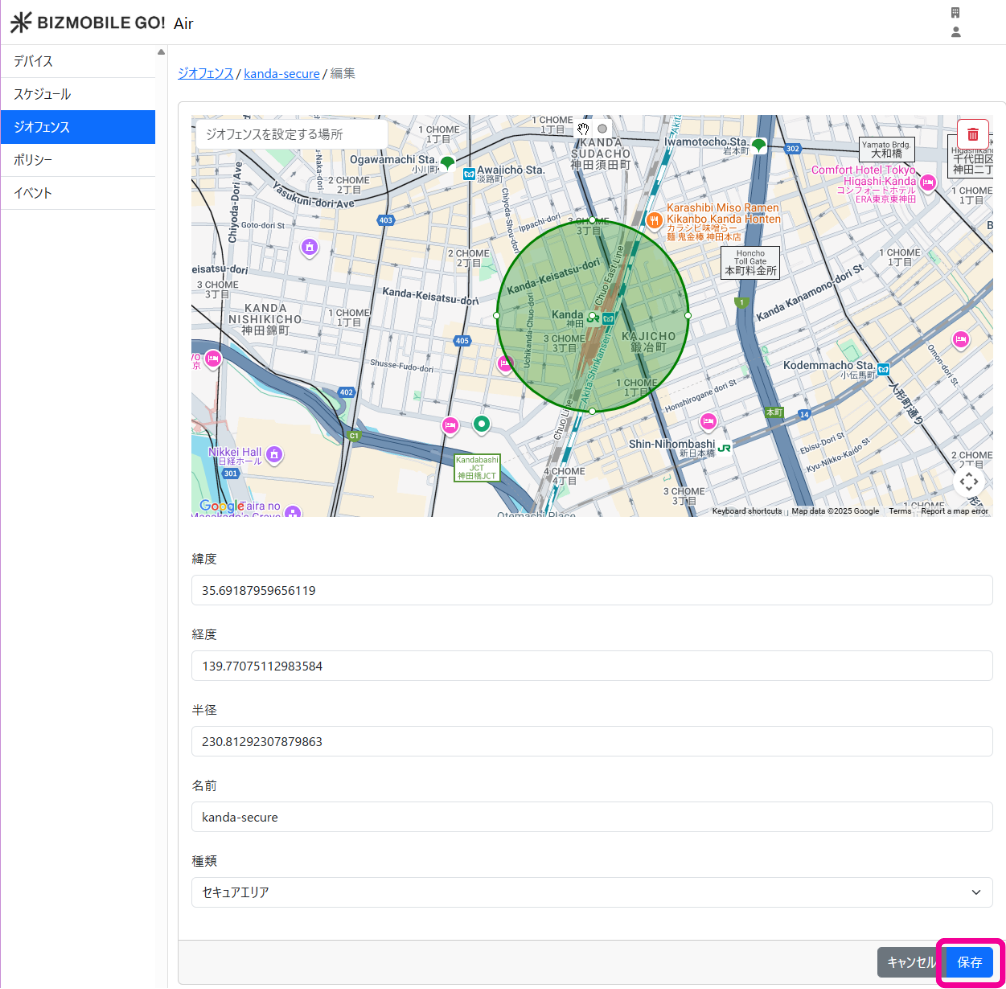

3. Click [Save].


Delete a geofence

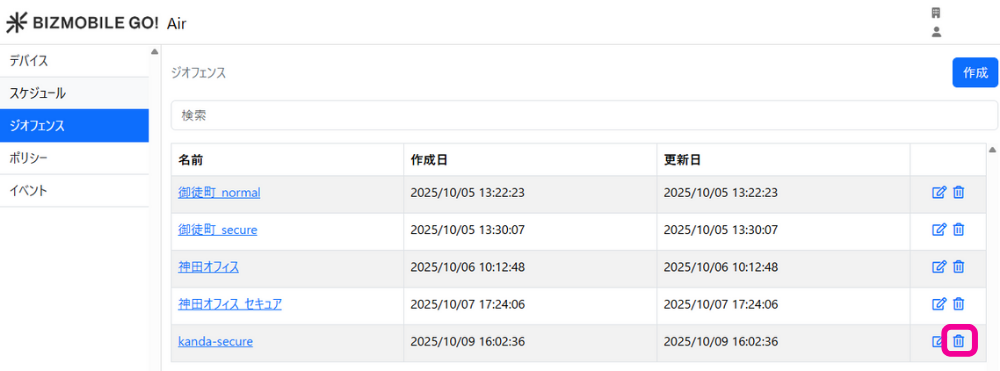

1. On the Geofence screen, click the icon next to the geofence you want to delete.

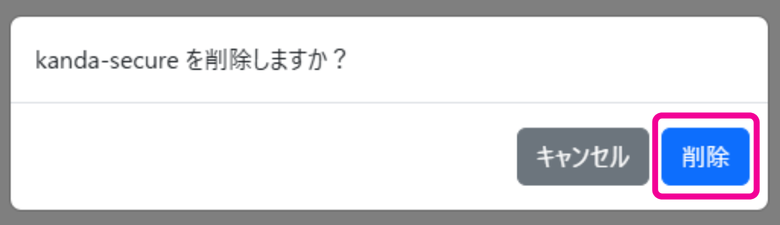

2. In the confirmation pop-up, click [Delete].
